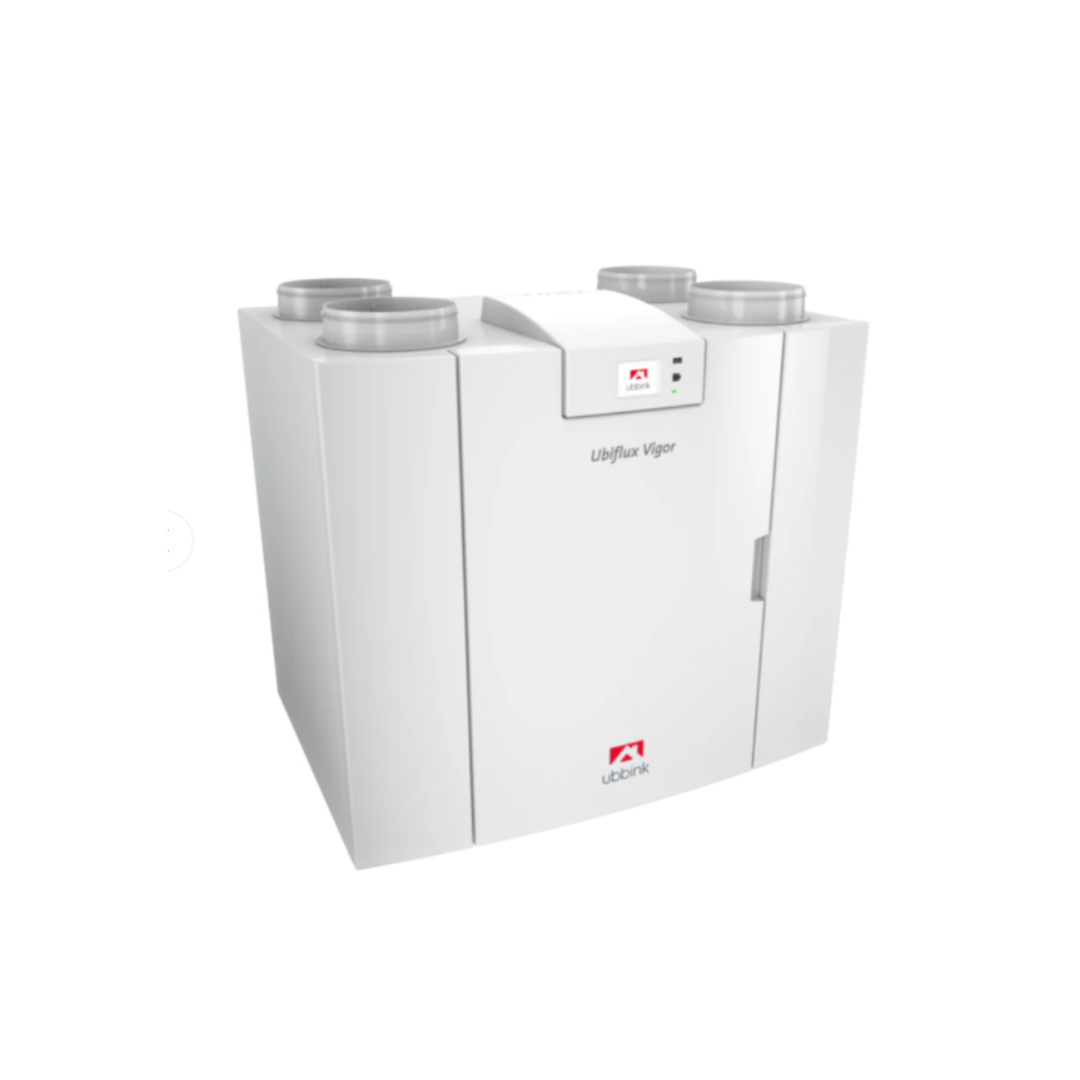

Ubbink Ubiflux Vigor W325 MVHR Unit – Right Hand
Ubbink Ubiflux Vigor W325 MVHR heat recovery unit – up to 325 m³/h
The Ubbink Ubiflux Vigor W325 is a compact, energy-efficient MVHR unit from Ubbink's Ubiflux Vigor range, with constant-flow fans and a high-efficiency Holmak heat exchanger.
It is designed for airtight new-build and renovated homes. This listing is the right hand version.
Key features
- Airflow: 50–325 m³/h @ 200 Pa
- Heat recovery: 88% at 224 m³/h
- Holmak heat exchanger
- constant flow 2.0
- TFT touchscreen
- ball siphon included
- modular pre-heater
The unit measures 750 × 650 × 560 mm, weighs 37 kg, has 4 × Ø160 duct connections.
Controls: TFT touchscreen with install/maintenance wizards; constant flow 2.0; Plus board option. Filters: G4 (ISO Coarse 60%). Left-hand and right-hand versions (not convertible)
Every MVHR system should be designed around the dwelling's ventilation rates, with insulated ducting on the outside-air and exhaust runs. We can supply matching ducting, filters and controls. Specifications are taken from the manufacturer's published data.
Supplied by Low Cost Renewables at trade prices, with delivery across the UK and Ireland.
Ubbink Ubiflux Vigor W325 specifications
| Max airflow | 50–325 m³/h @ 200 Pa |
|---|---|
| Heat recovery efficiency | 88% at 224 m³/h |
| SFP / SPI | 0.15 Wh/m³ |
| Dimensions | 750 × 650 × 560 mm |
| Weight | 37 kg |
| Duct spigots | 4 × Ø160 |
| Power | 2 × 59 W (excl. 0–1000 W pre-heater); 230 V |
| Bypass | Yes – automatic bypass valve |
| Filters | G4 (ISO Coarse 60%) |
| Handing | Right Hand – Left-hand and right-hand versions (not convertible) |
| Controls | TFT touchscreen with install/maintenance wizards; constant flow 2.0; Plus board option |
| Part numbers | Not found |
